E-TING 4Pcs 198LBS Hand Tool 201-BHB Toggle Clamp Horizontal Clamp Antislip 201B-Upgrade Quick Release Tool (Heightened Clamp)

Manufacturer Part Number: 4xSKU10645#16

Bullet point:

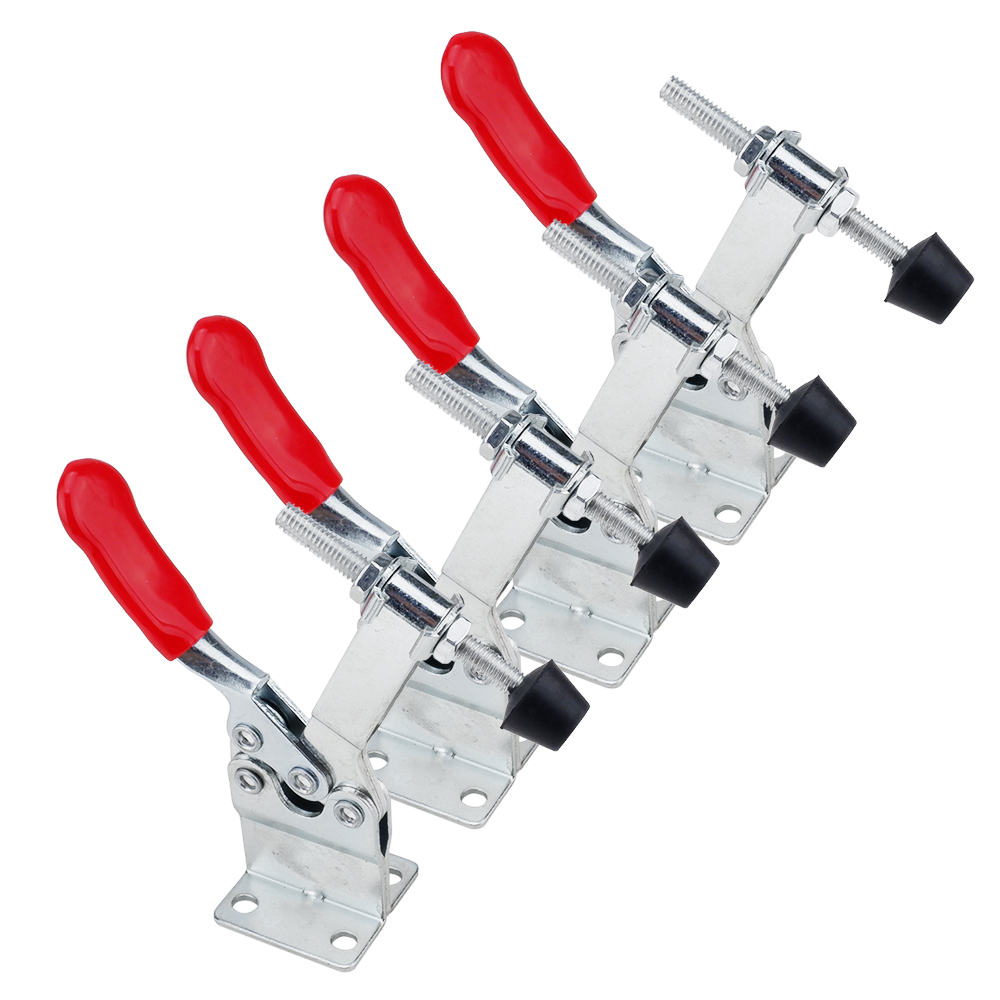

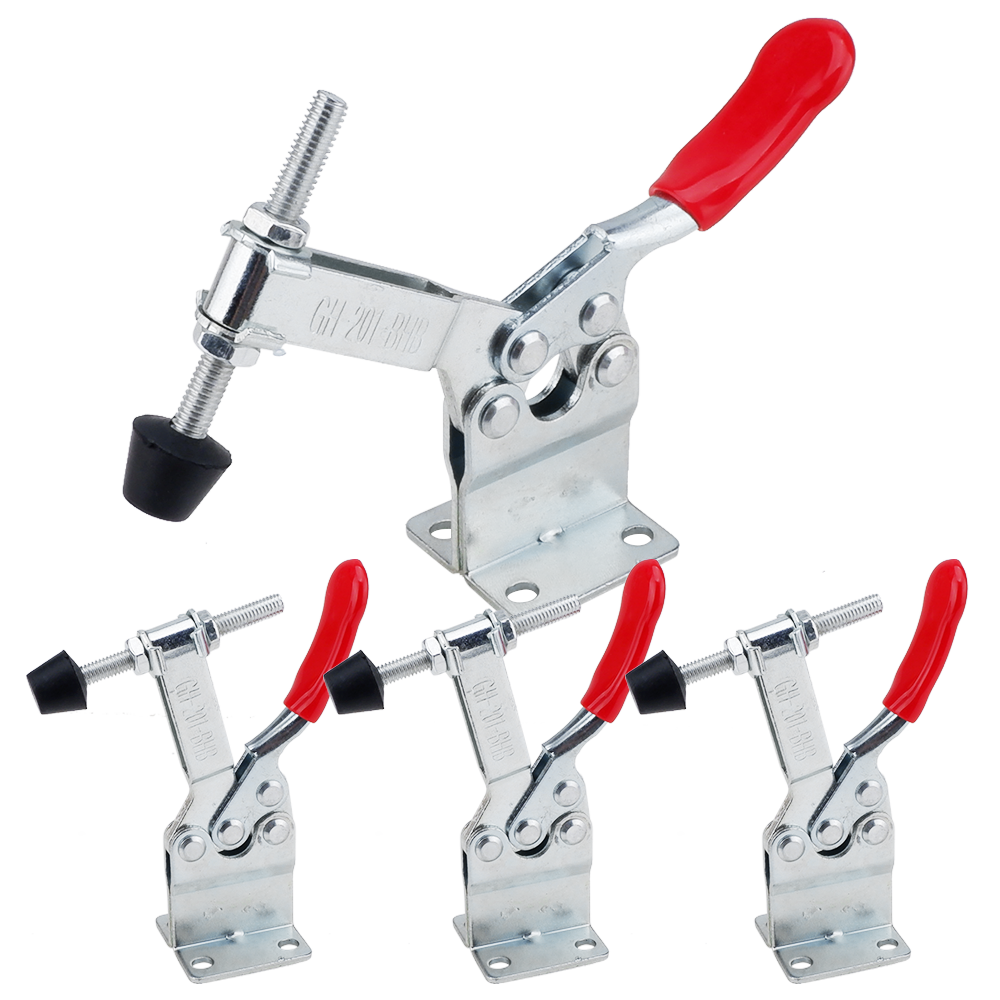

• Package Included: 4 pcs E-TING GH-201-BHB horizontal quick release toggle clamp
• Size: approx. 145*35*50mm /5.7″*1.38″*1.97″（L*W*H,19mm higer than 201B toggle clamp）Holding capacity force: 198 lbs.
• Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance; Oil and Stain resistant red vinyl solid hand grips, complete with adjustable rubber pressure tips
• Design: Low height design. Retracted clamp will allow for vertical removal of clamped item, mechanism allows maximum clearance
• Application: A rock-solid grip to install on jigs, tool fixtures, or movable bases

Description:

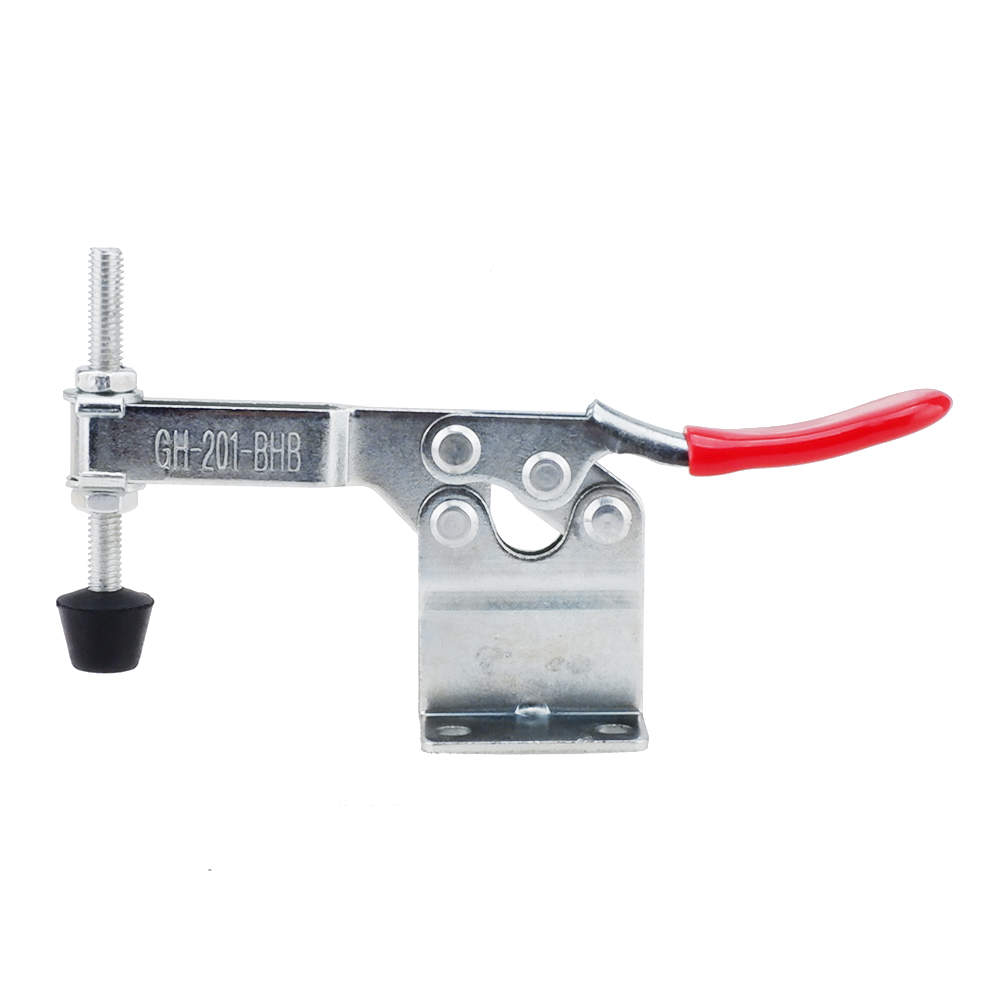

GH-201-BHB Heightened Toggle Clamp

E-TING Horizontal Quick-Release Toggle Clamp is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that won’t slip. Features a low height design and mechanism, to allow for maximum clearance. Vinyl colored grip for easy identification and comfort. Zinc-plated coating for corrosion resistance. Retracted clamp will allow for vertical removal of clamped item. This versatile and handy clamp makes woodworking perfection a breeze.

Specifications

• Type: Horizontal quick release holding clamp
• Retracted clamp will allow for vertical removal of clamped item. This versatile and handy clamp makes woodworking perfection a breeze.
• Handle Opens Angle: 60°
• Holding Bar Opens Angle: 85°
• Holding Capacity: 90Kg / 198Lbs
• Hole Dimension: 0.5cm / 0.196" inches

Much more higher than original 201B toggle clamp

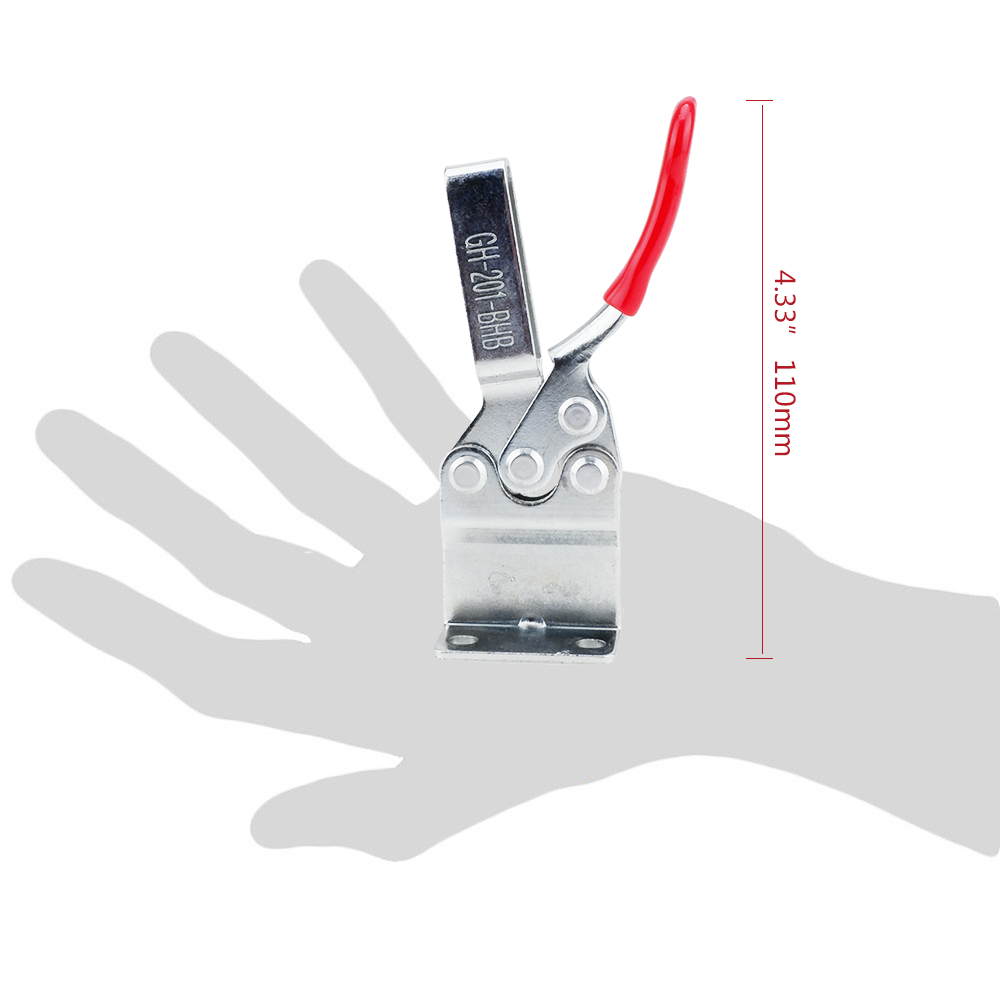

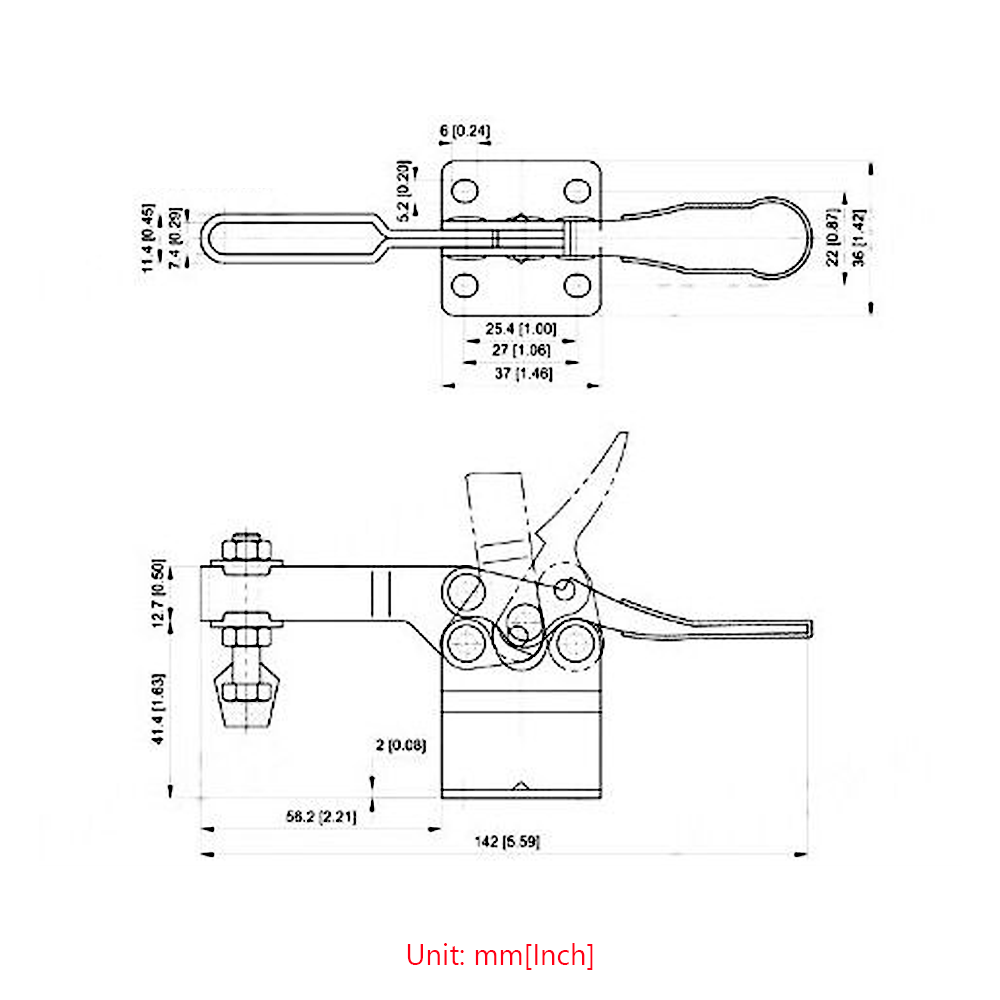

• Measurement: 145*35*55mm /5.7″*1.38″*2.17″（L*W*H,19mm higher than original 201B toggle clamp）
• A quick blessing and quick opening mechanism designed by using the fixed point principle of mechanical four-link bar is adopted, which is flexible and smooth without swinging.

Zinc-plated material

• Zinc-plated coating for corrosion resistance.

Grip

• Vinyl colored grip for easy identification and comfort.
